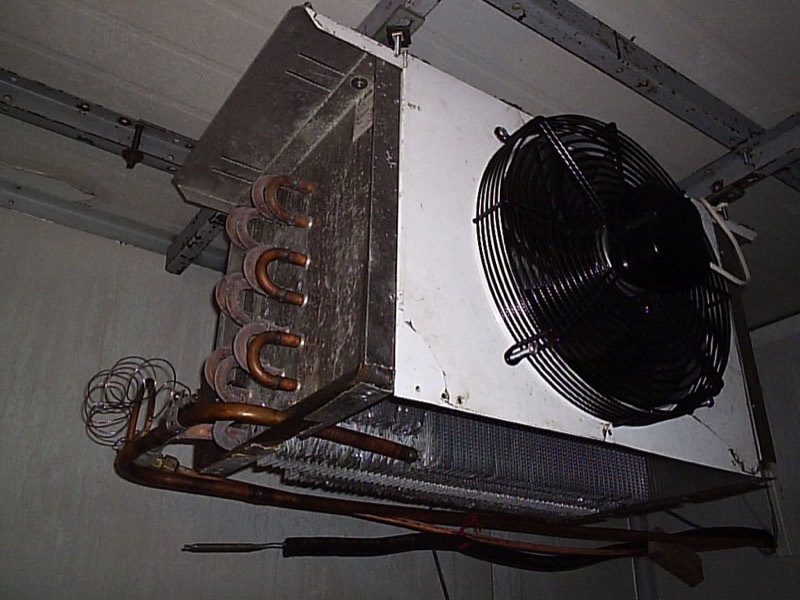

Copper finned-tube evaporator coil installed in a cold storage room

Series 100 · Finned-Tube

Finned-Tube Heat Exchangers

Finned-tube heat exchangers are coil assemblies used in commercial HVAC equipment and industrial heat transfer systems. Designwinds produces fin-and-tube products configured to customer specifications for both standard and engineered-to-order programs.

Typical applications include air-cooling coils, condenser coils, process heat transfer, and waste heat capture in industrial environments. Materials include copper tubes with aluminum or copper fins; stainless and carbon steel are available for specialized service.

Common configurations

Direct expansion (DX) evaporator and condenser coils
Chilled water and hot water coils
Steam and glycol coils
Industrial process heat transfer coils

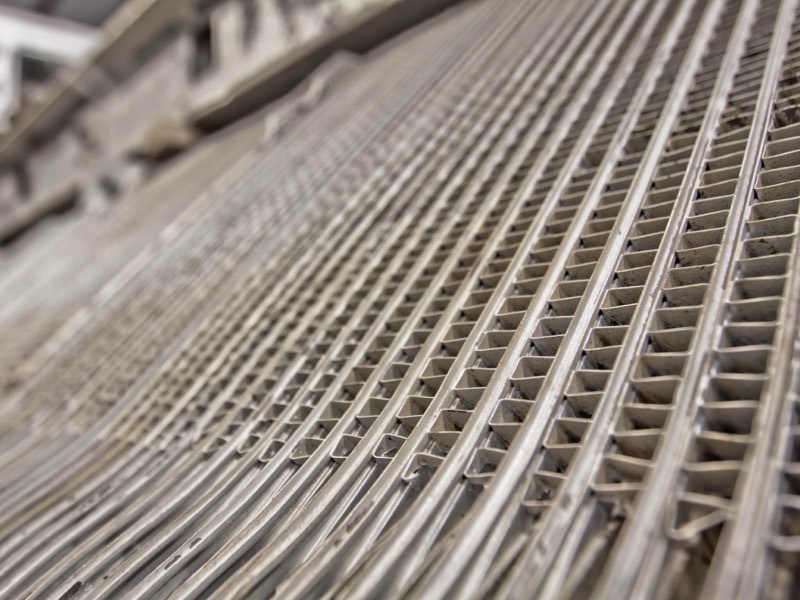

Close-up of brazed aluminum microchannel core construction

Series 200 · Microchannel

Microchannel Heat Exchangers

Microchannel heat exchangers use brazed aluminum construction to deliver compact thermal performance for air-cooled refrigeration, condensing, and HVAC applications. We manufacture microchannel coils in a range of geometries to match customer designs.

Brazed aluminum construction reduces weight and material cost compared to traditional copper/aluminum fin-and-tube assemblies, and is suitable for applications where size and weight are constrained. Used in unitary HVAC, transportation refrigeration, and packaged process cooling.

Typical applications

Unitary HVAC condensers and evaporators
Transport refrigeration condensers
Packaged process cooling and chillers
Compact heat pump applications

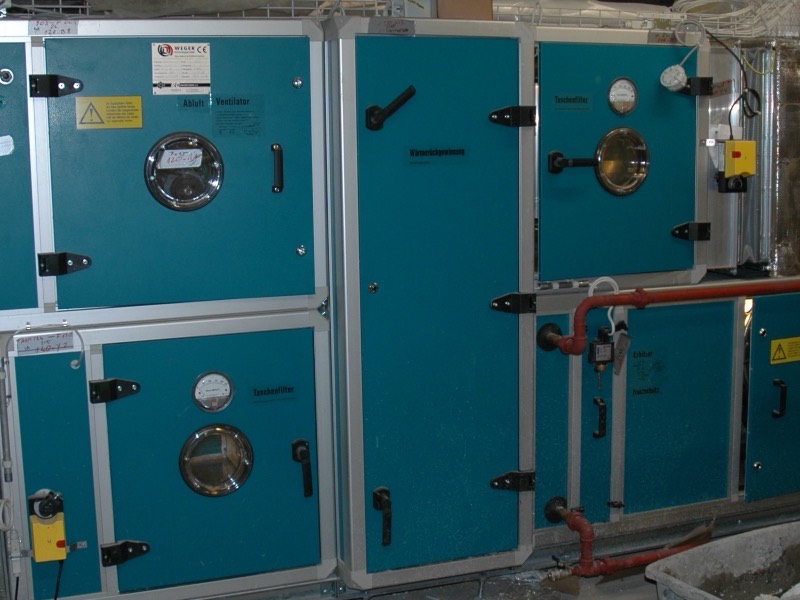

Heat recovery ventilation unit in a basement mechanical room

Series 300 · Heat Recovery

Heat Recovery Components

Heat recovery components capture waste thermal energy from process and ventilation airstreams for reuse elsewhere in a building or facility. Designwinds supplies heat recovery products to commercial HVAC systems and industrial process applications.

Configurations include energy recovery wheels, plate-style heat recovery cores, run-around loop coil pairs, and brazed plate-and-fin recuperators supplied to OEM customers for integration into air handlers and energy recovery ventilators.

Heat recovery products

Energy recovery wheel components
Plate-and-fin recuperators
Run-around glycol loop coil pairs
Plate-style heat recovery cores

Industrial process piping with heat exchanger and instrumentation

Series 900 · Custom

Custom Thermal Solutions

Custom thermal solutions cover engineered-to-order components developed for applications that fall outside standard product lines. Designwinds works with customer engineering teams from concept through production.

Past programs have included specialty heat exchangers for industrial process equipment, refrigeration packages, energy recovery integrations, and engineered thermal assemblies built to customer drawings and specifications.

Engineering support

Concept review and feasibility assessment
Drawing review against fabrication and brazing capability
Prototype and first-article production
Production transition and ramp-up

Reference

Construction Options & Materials.

Standard material and configuration options across Designwinds product lines. Engineered-to-order programs support additional combinations on review.

Element	Series 100 · Finned-Tube	Series 200 · Microchannel	Series 300 · Heat Recovery	Series 900 · Custom
Tube Material	Copper, copper-nickel, stainless steel	Brazed aluminum (integral)	Copper, aluminum, stainless	To specification
Fin Material	Aluminum, copper, coated aluminum	Aluminum (integral)	Aluminum, aluminum w/ coating	To specification
Coating Options	Hydrophilic, epoxy, marine-grade, gold-equivalent	Hydrophilic, epoxy	Hydrophilic, epoxy (where applicable)	Application-specific
Construction	Fin-and-tube, brazed or mechanical bond	Brazed aluminum, multi-row	Plate-fin core, wheel, run-around loop	Engineered-to-order
Refrigerant Compatibility	R-410A, R-454B, R-32, R-134a, R-744 (CO₂), ammonia	R-410A, R-454B, R-32, R-1234yf	Glycol loops, air-to-air	Application-specific
Working Fluid	Refrigerant, chilled water, hot water, steam, glycol	Refrigerant only	Air-to-air, glycol intermediate	To specification
Typical Applications	Commercial HVAC, industrial process, refrigeration	Unitary HVAC, transport refrigeration, heat pumps	ERV/HRV, DOAS, heat recovery ventilators	Specialized industrial and OEM programs

Reference only. Specific configurations are reviewed and confirmed during quoting on a program-by-program basis. Last revised Q1 2026.

For product inquiries, contact sales.

Quoting and engineering support is available for standard and engineered-to-order programs.
